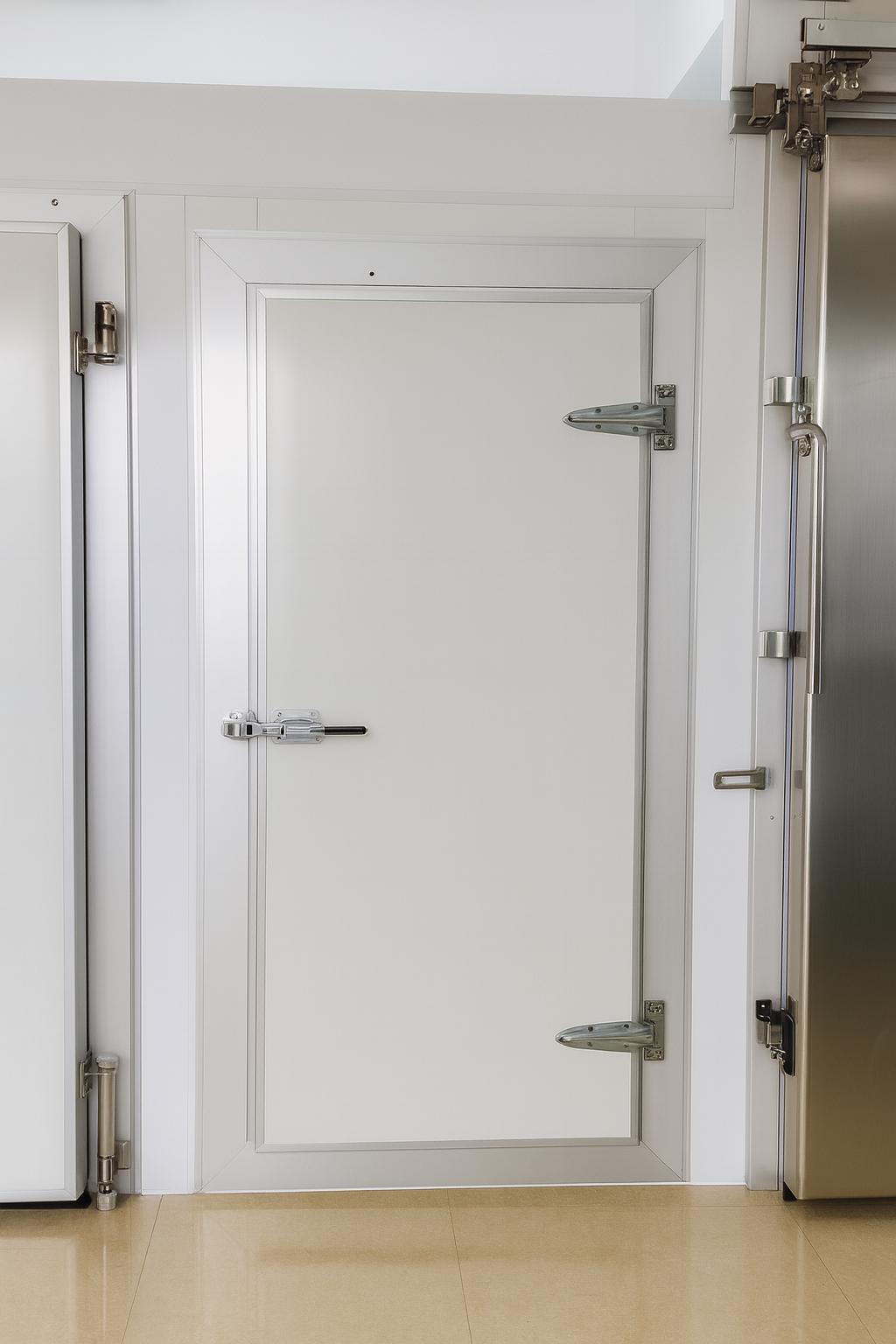

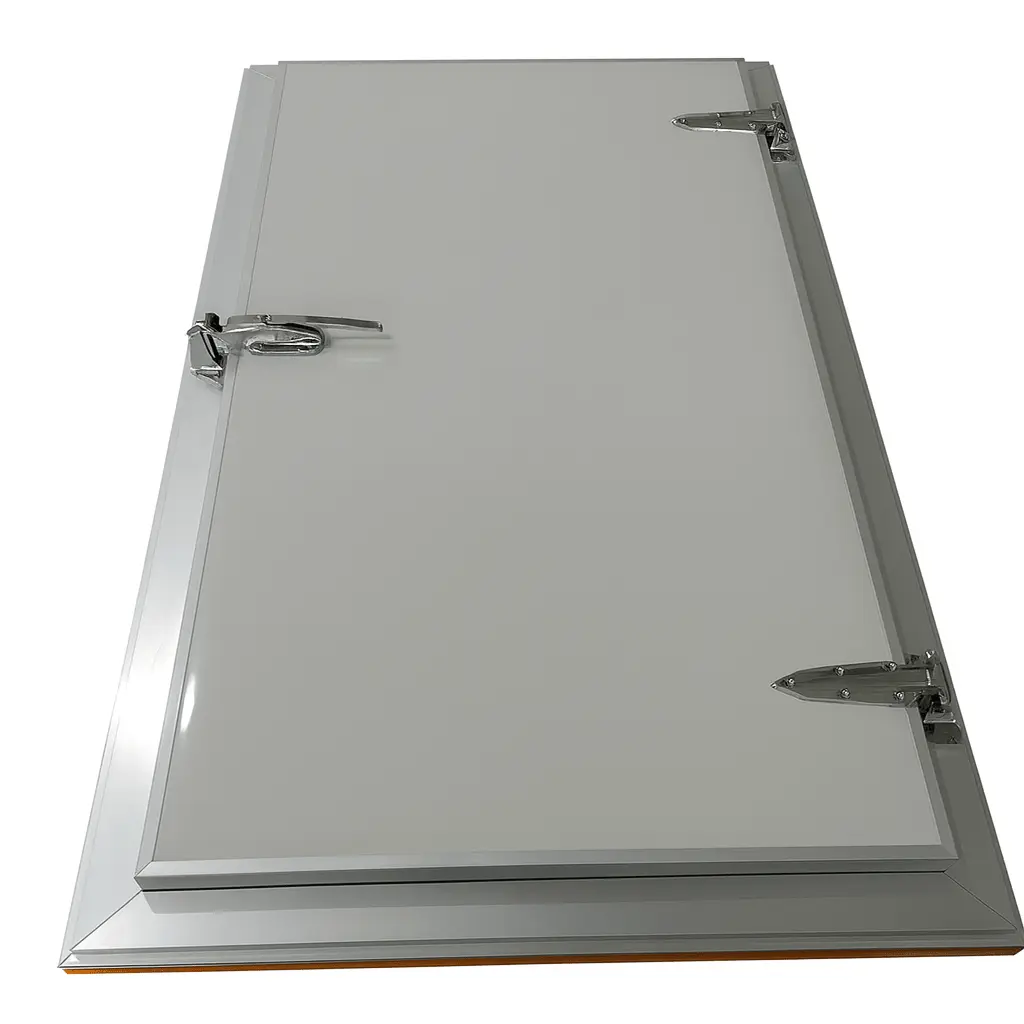

The Aluminum-Framed Semi-Flush Cold Room Door is designed for direct mounting onto cold room panels without the need for a separate door frame. Featuring a sleek semi-flush design, the door surface aligns closely with the cold room wall, ensuring a smooth finish and improved aesthetics. The aluminum edging not only enhances the door’s durability but also offers superior corrosion resistance, making it suitable for various temperature-controlled environments.
Direct-Mount Design – No additional door frame required, saving installation time and cost.
Semi-Flush Appearance – Creates a clean, modern look and minimizes dust accumulation.
Aluminum Edging – Provides enhanced strength and corrosion resistance.
Customizable Sizes – Available in standard or bespoke dimensions to fit your cold room.
High-Performance Sealing – Ensures excellent thermal insulation and prevents energy loss.
Parameter | Specification |
|---|---|
Door Type | Semi-flush, hinged cold room door |
Installation | Direct mounting on cold room panels |
Frame Material | Anodized aluminum alloy |
Door Leaf Thickness | 75mm / 100mm / Custom |
Panel Surface | Pre-painted steel or stainless steel (201/304) |
Core Material | Polyurethane (PU) insulation, 40–45 kg/m³ density |
Sealing | Food-grade EPDM or PVC gasket |
Lock Type | Lever handle with internal safety release |
Temperature Range | -45°C to +60°C |
Walk-in cold rooms for food storage
Pharmaceutical and medical cold storage
Industrial refrigeration facilities
Supermarket cold chambers
Laboratory cold rooms
Compared to traditional framed semi-flush cold room doors, the Aluminum-Framed Semi-Flush Door offers a faster and easier installation process. It eliminates the need to fabricate additional PU door frames or embed parts in advance. The door can be directly fixed onto rock wool panels or cold room panels using mushroom head fasteners or rivets, allowing for easy assembly and disassembly. This not only reduces material and labor costs but also enhances flexibility for relocation or maintenance. The flush design further improves hygiene by minimizing gaps where dust and bacteria can accumulate.
We offer a wide range of customization options, including different panel colors, stainless steel grades, thicknesses, and lock styles. Viewing windows and kick plates can also be added upon request.
Yes, it can be installed directly onto any solid wall or cold room panel without a separate door frame.
It has slightly higher heat loss compared to traditional framed cold room doors, so it is not recommended for low-temperature freezers. It is best suited for chiller rooms or preservation cold rooms.
No, it only requires fixing with rivets or mushroom head fasteners. The process is simple, secure, and quick.
The aluminum frame cost is similar to traditional door frames. It is ideal for projects with existing walls but without pre-installed door frame components, allowing for convenient installation without dismantling the wall.
It is as strong and durable as traditional cold room doors, ensuring long-term use under proper maintenance.
