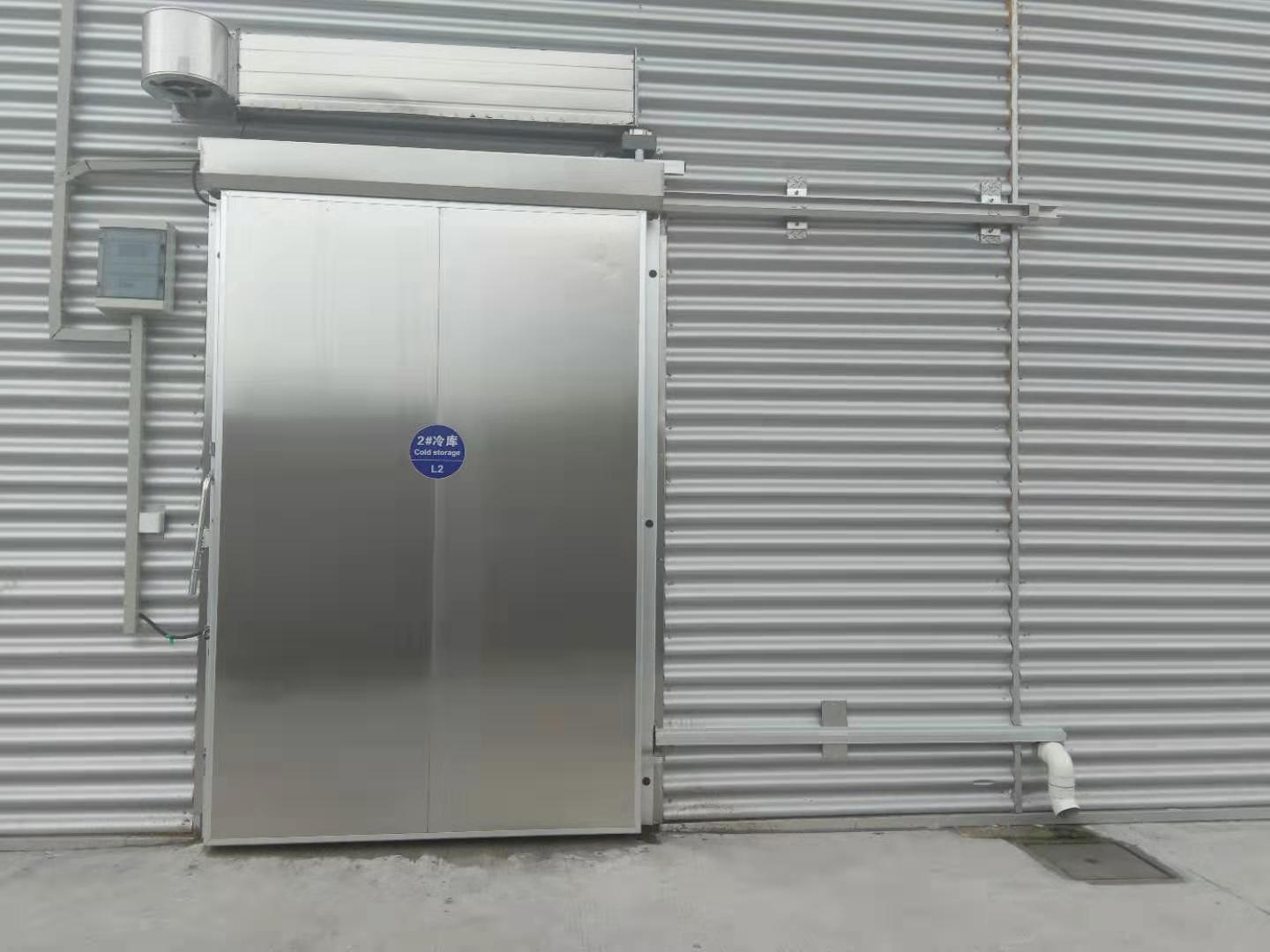

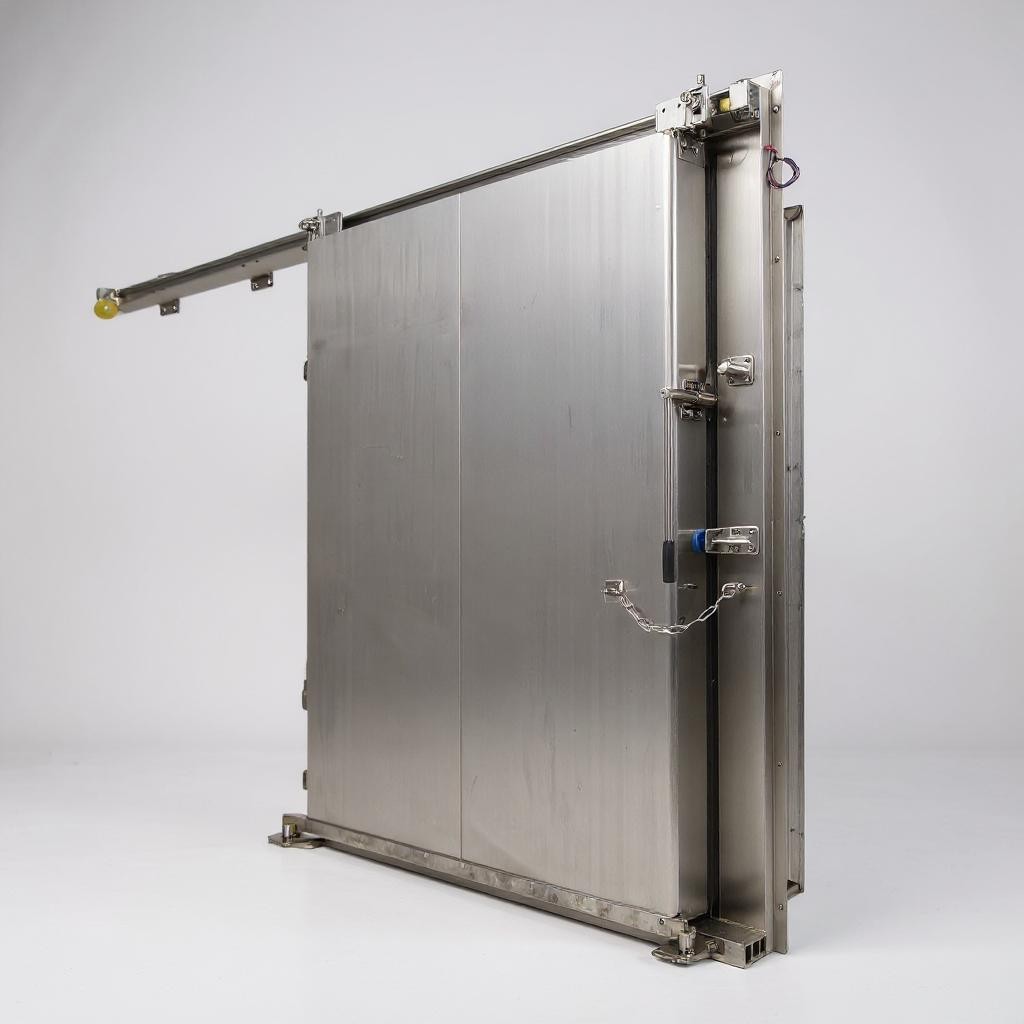

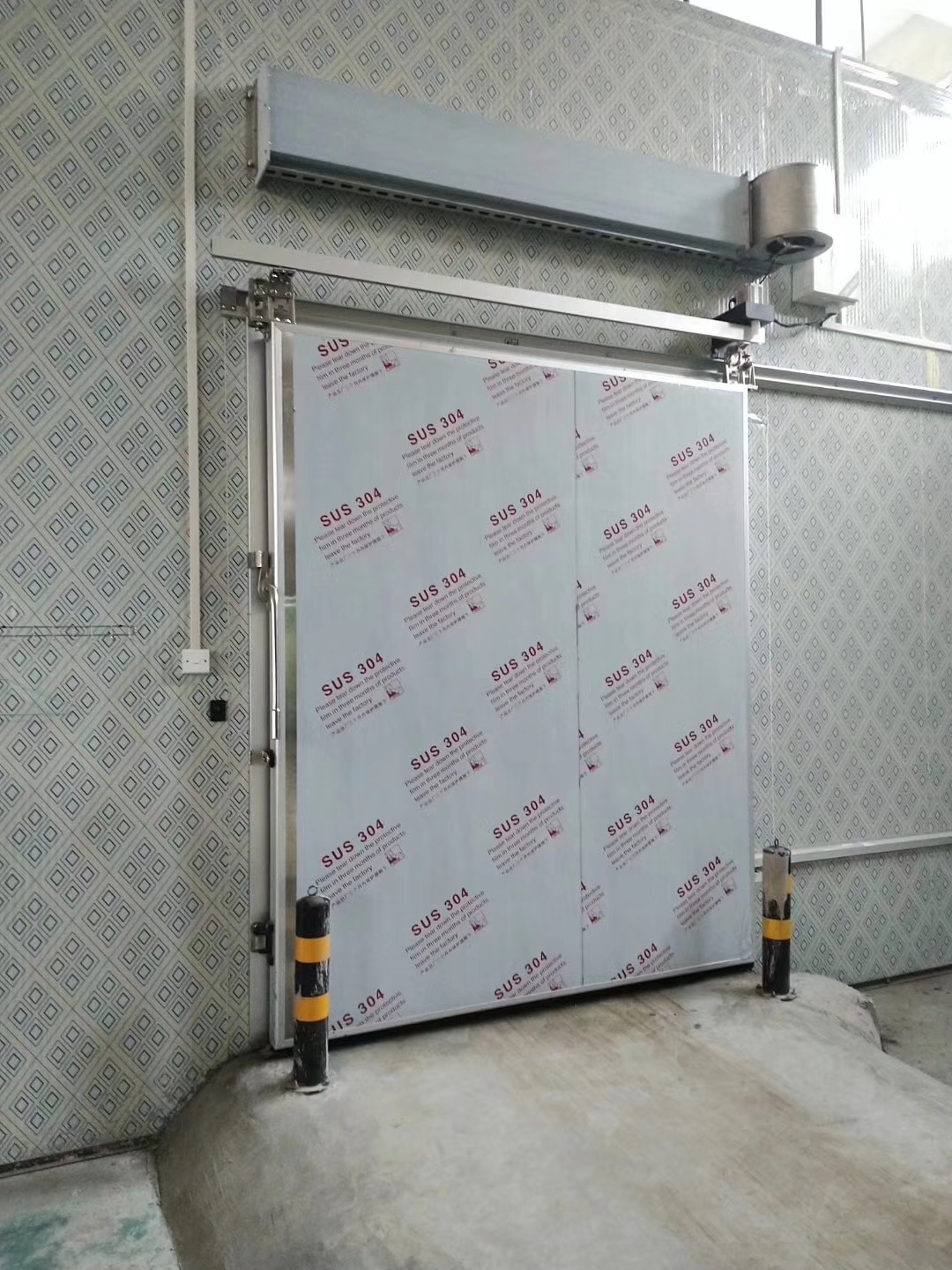

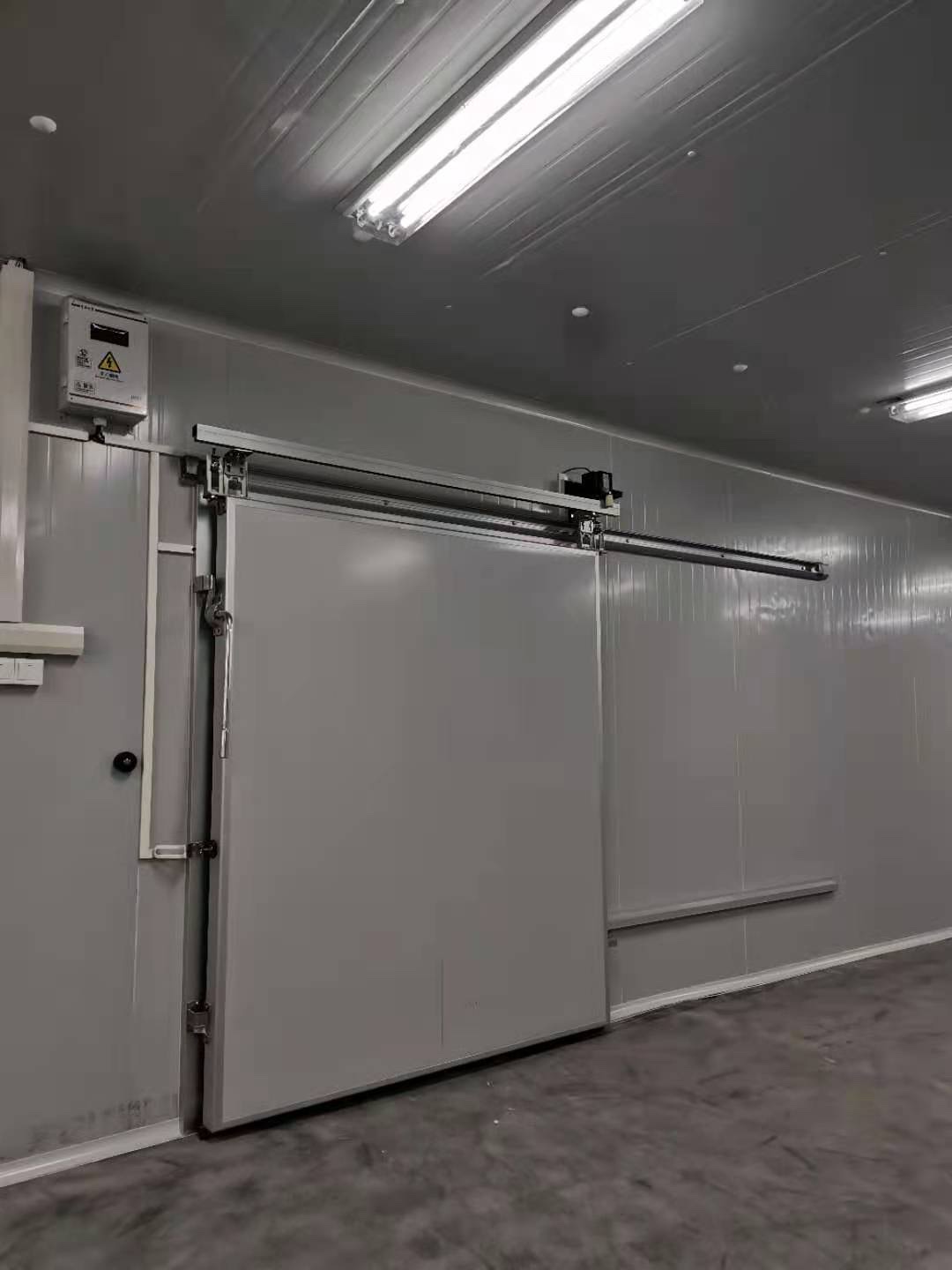

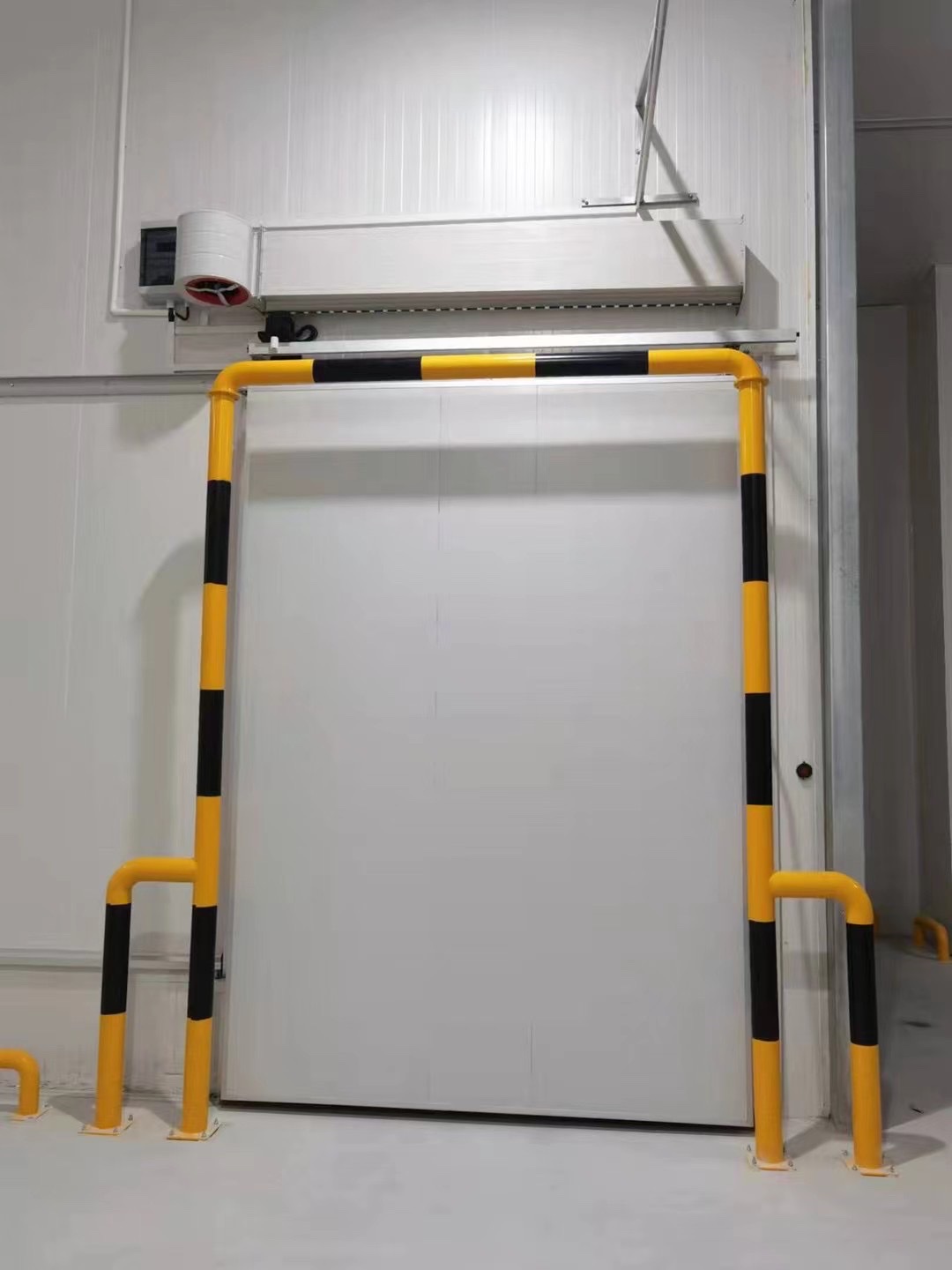

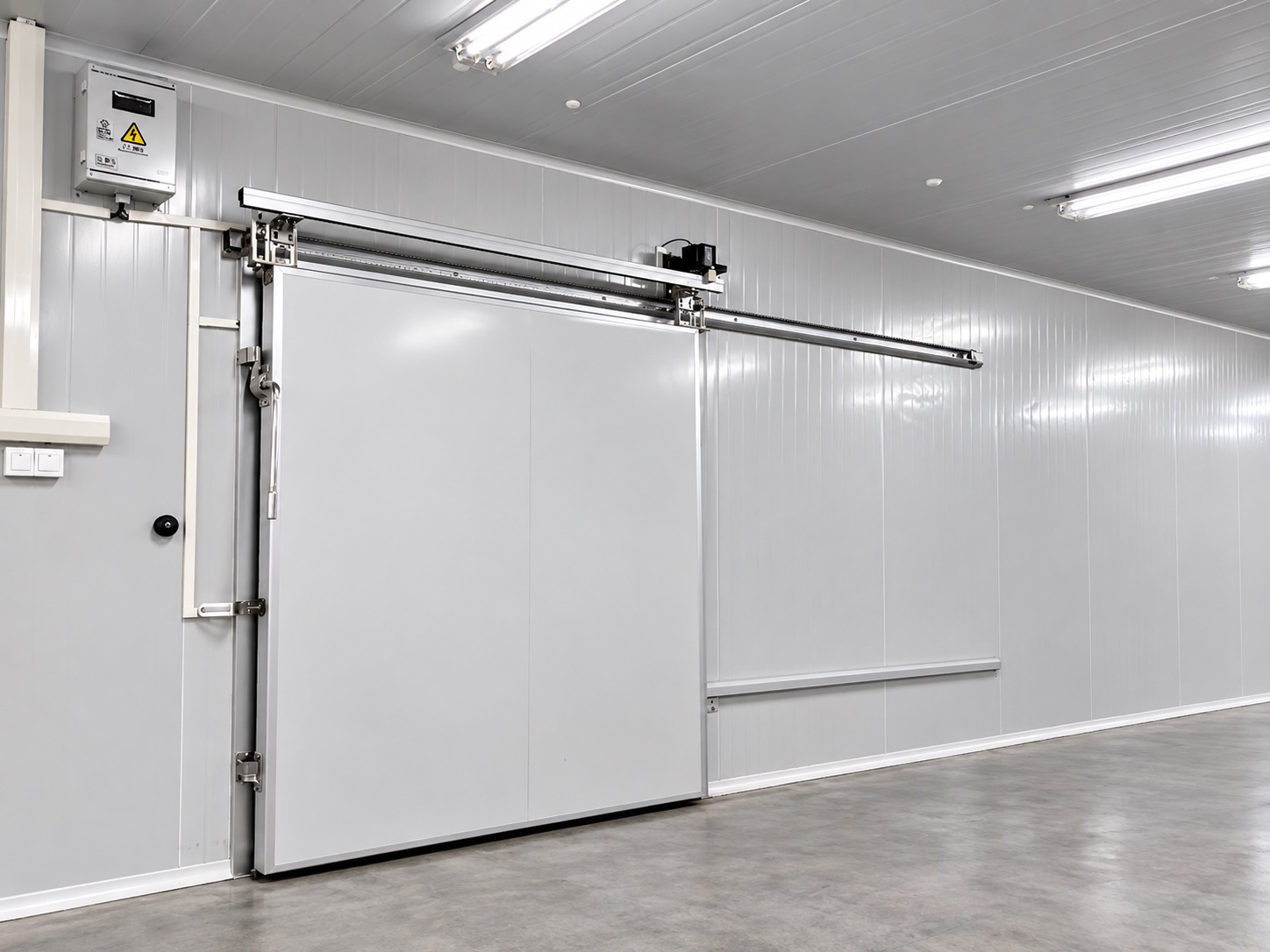

The electric sliding door is designed specifically for cold room environments requiring frequent access, superior insulation, and secure sealing. Powered by a brushless DC motor system, the door opens and closes automatically with smooth, low-noise operation. Its durable construction, excellent thermal performance, and intelligent control options make it ideal for food, pharmaceutical, logistics, and industrial applications.
Automatic & Smooth Operation
Driven by a high-efficiency brushless DC motor for quiet and stable sliding.
Excellent Thermal Insulation
Door panel is filled with high-density polyurethane foam for superior cold retention.
Airtight Sealing
Magnetic sealing strips and compression closing mechanism ensure optimal sealing.
Multi-Control Compatibility
Supports wireless remote, pull switch, push button, and optional radar sensor.
Safety Functions
Equipped with soft start/stop, anti-pinch protection, and emergency release handle.
Cold storage rooms
Food processing plants
Pharmaceutical warehouses
Industrial clean corridors
Distribution and logistics centers
We offer two drive configurations to suit different installation needs:
DC Brushless Control Box
DC Brushless Motor
2× Wireless Pull Switches
2× Wireless Push Button Boxes
2× Remote Controllers
Belt Drive Mechanism
DC Brushless Control Box
DC Brushless Motor with gear output
2× Wireless Pull Switches
2× Wireless Push Button Boxes
2× Remote Controllers
Gear Rack
All kits are pre-configured for fast installation and long-term stable performance in cold environments.
Motor
Type: DC Brushless Motor
Rated Voltage: 36V
Rated Power: 180W
Rated Speed: 155 RPM
Maximum Torque: ≥ 45Nm
Protection Level: IP54
Operating Temperature: -20°C to +50°C
Duty Cycle: S3
Cable Length: 450 mm
Cable Spec: 3×1.5mm² + 5×0.2mm²
Weight: 3.5 kg

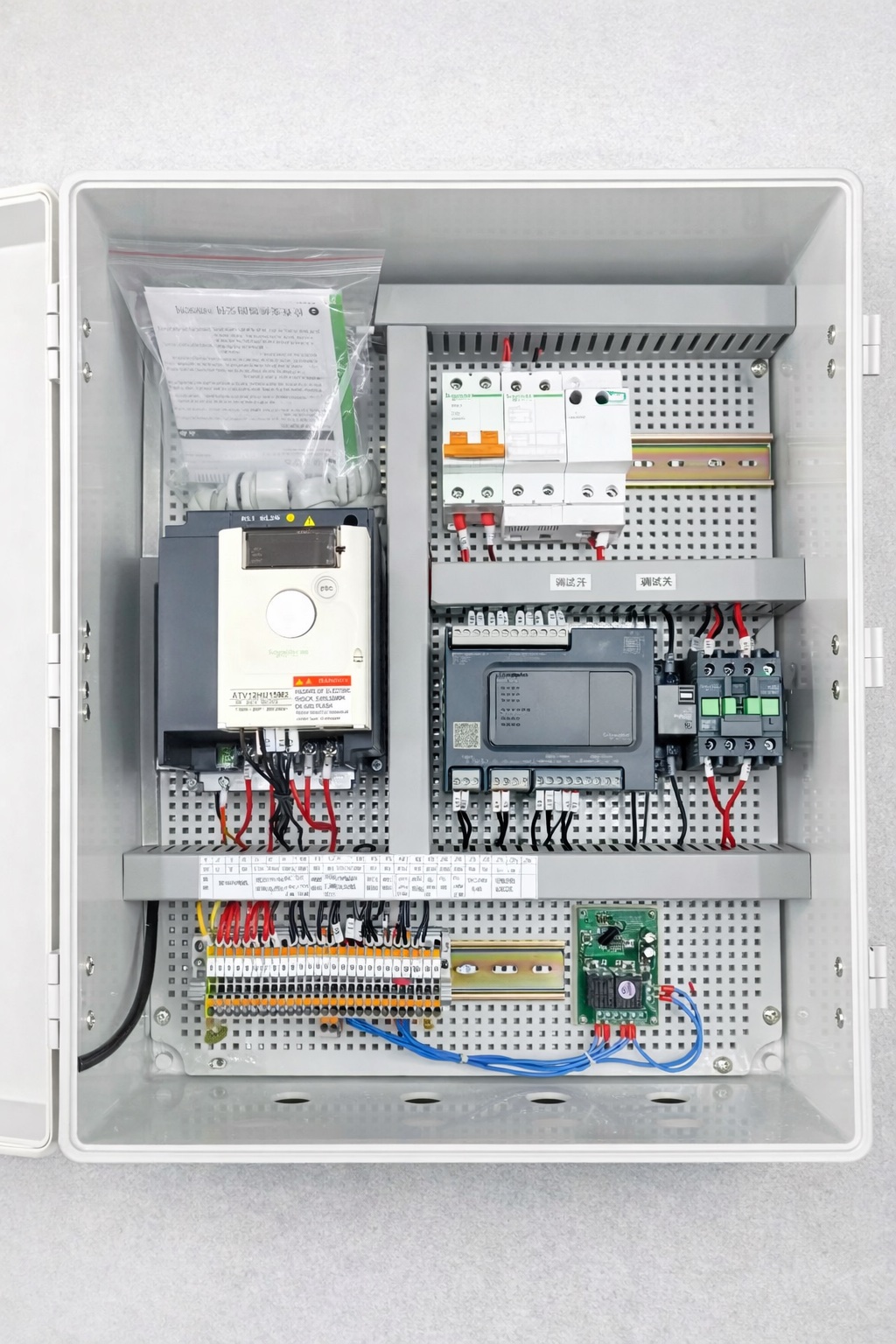

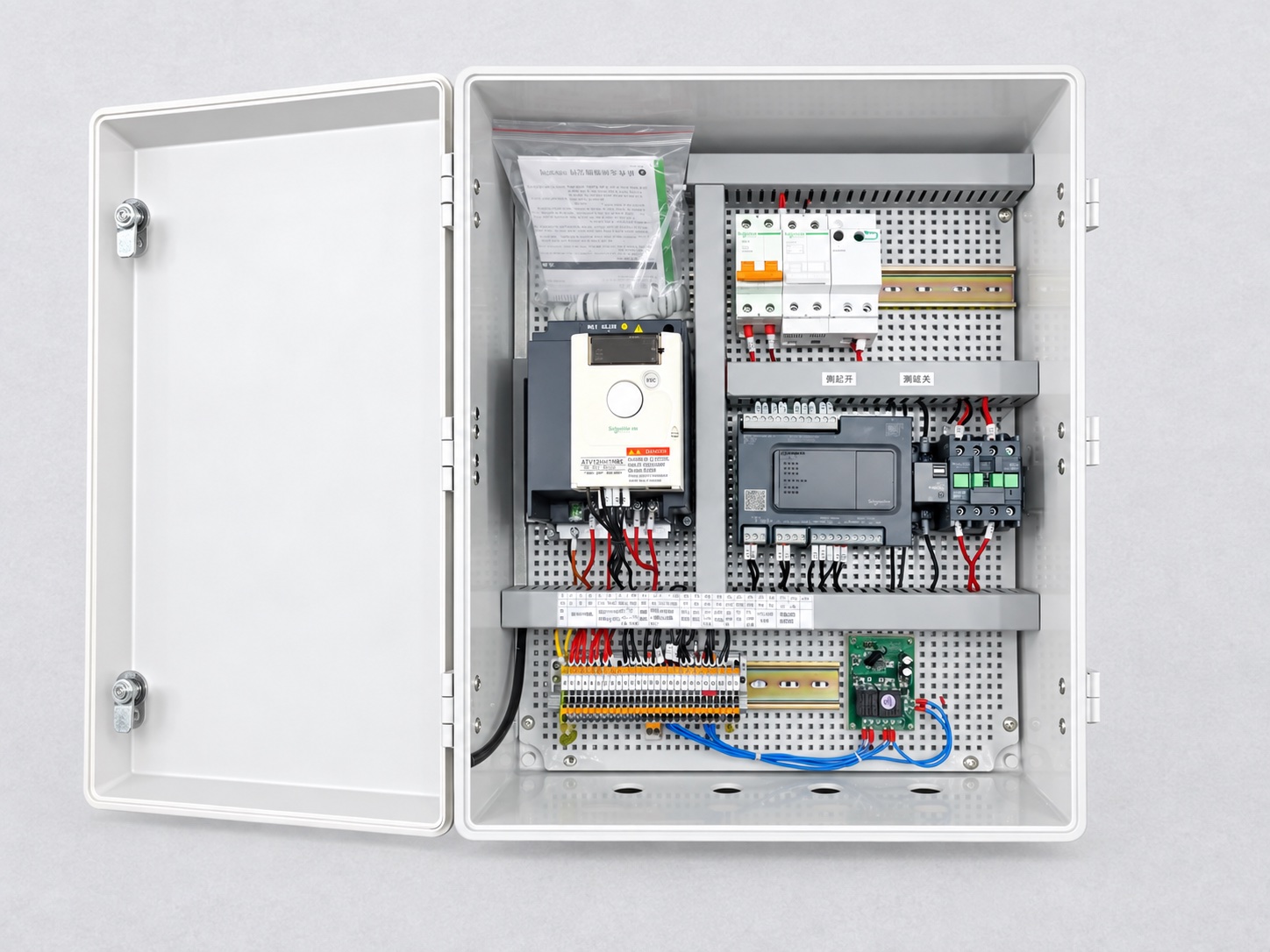

Control Box
Input Voltage: 220V / 380V AC
Output Voltage: 220V / 380V / 36V AC
Controller
Input Voltage: 31–50V DC
Output Current: 10A
